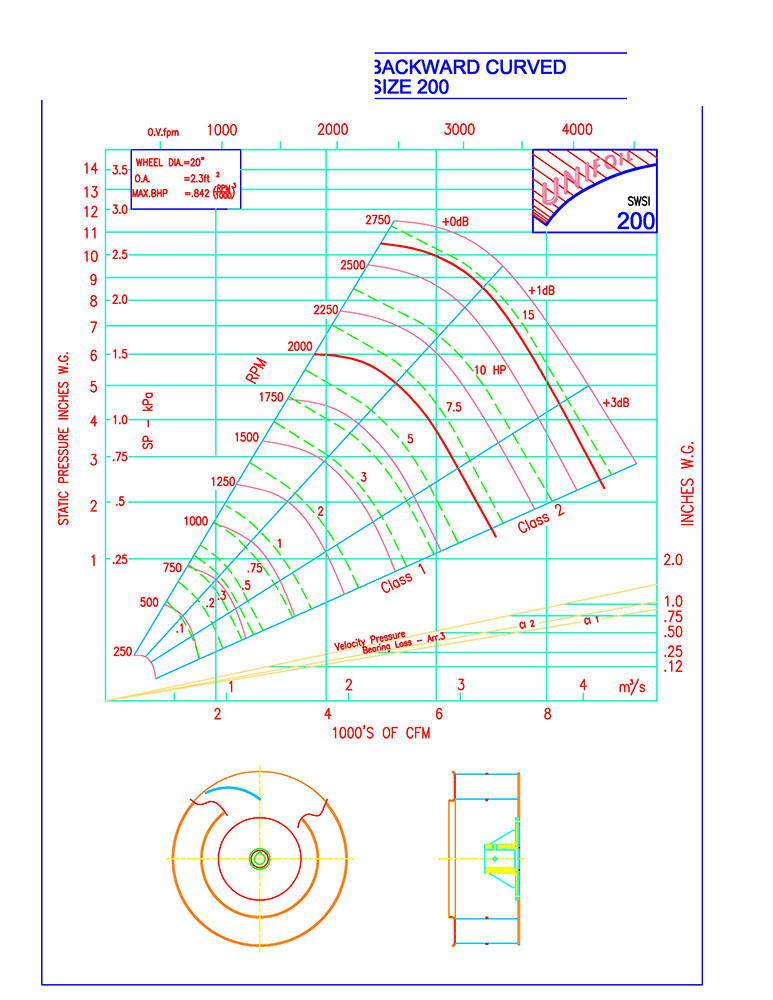

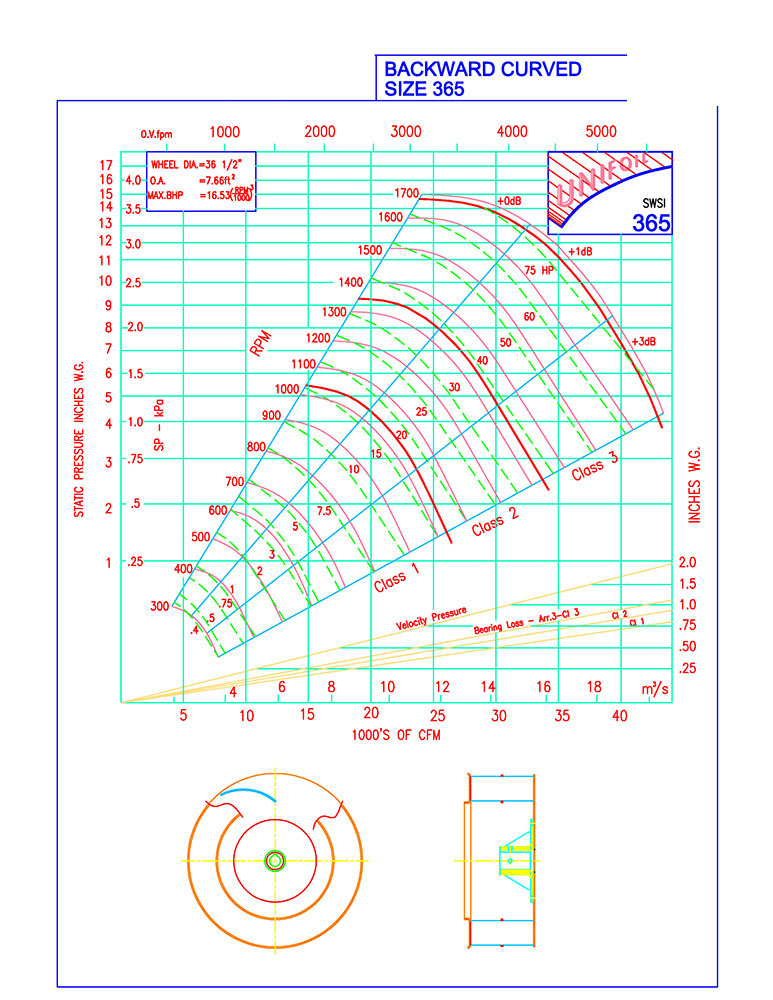

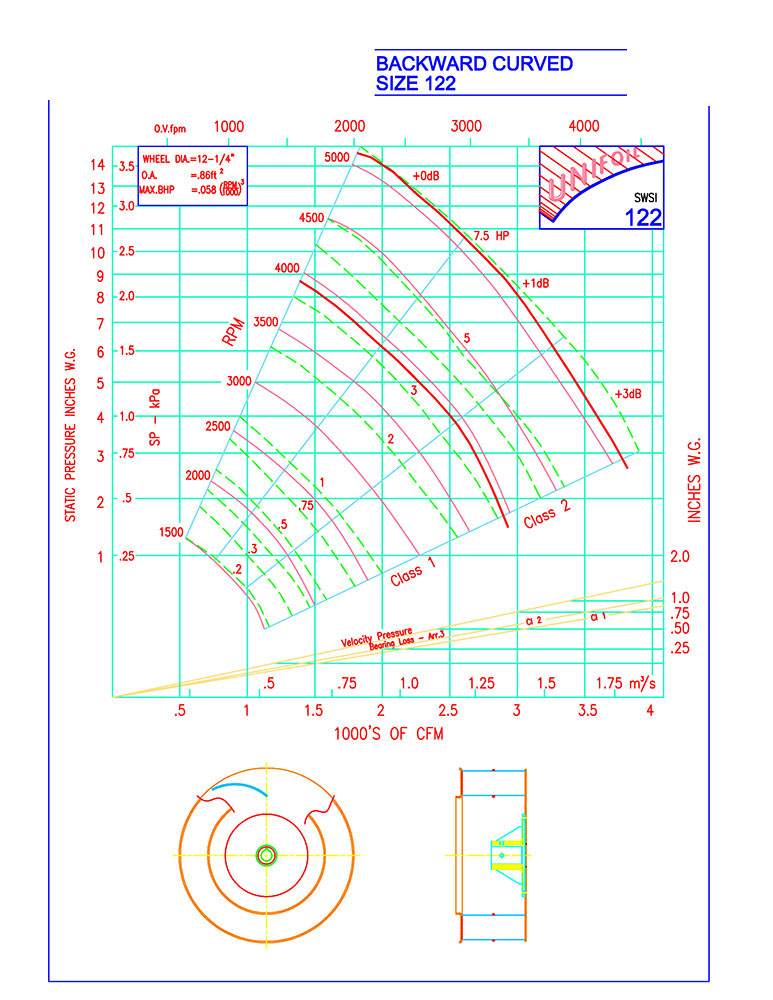

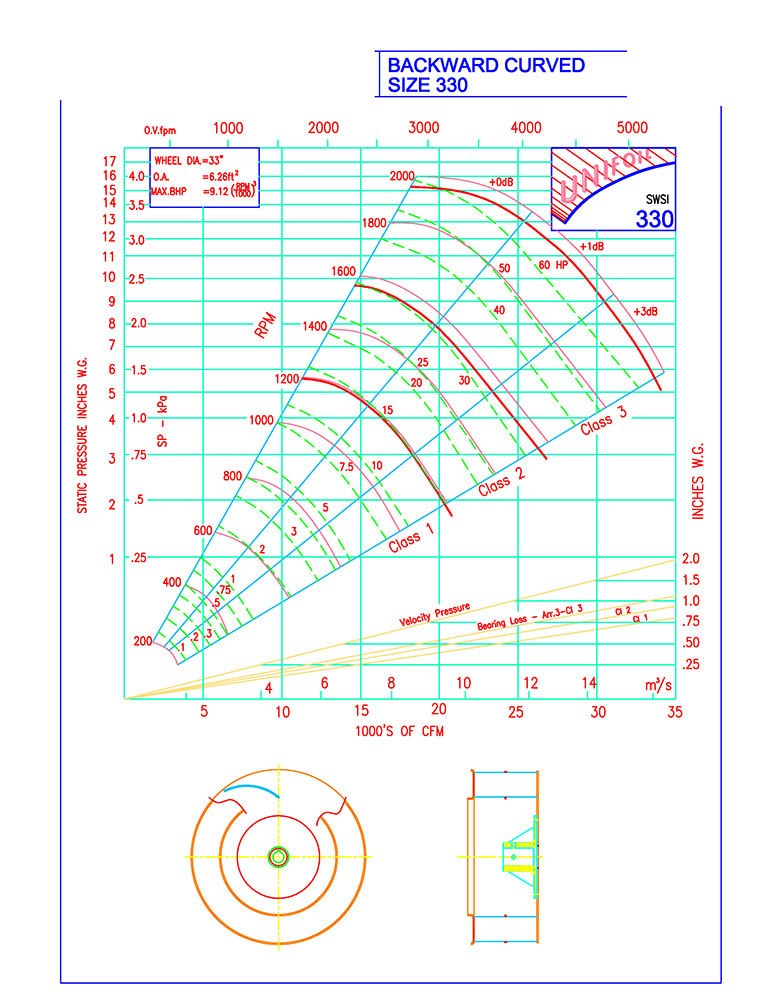

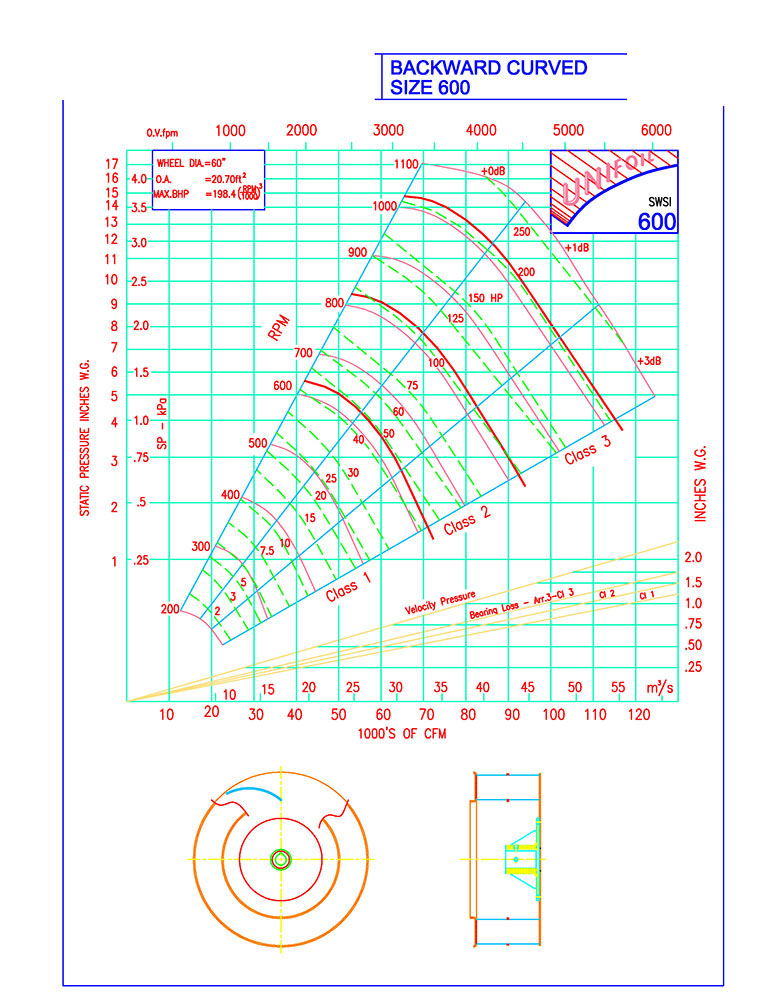

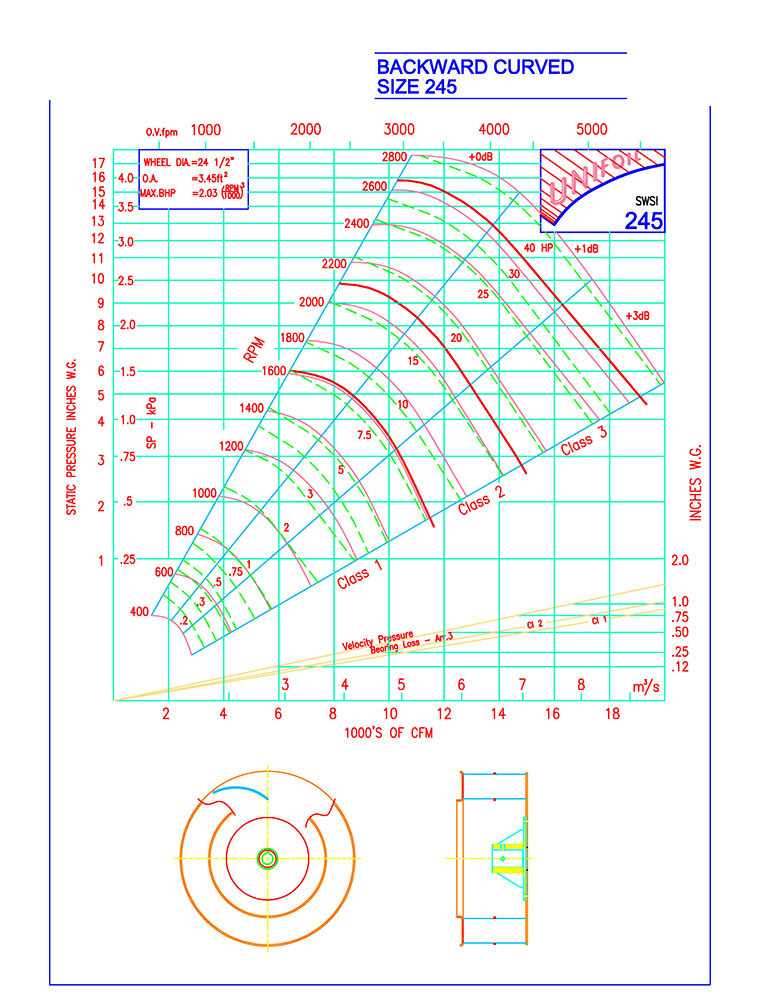

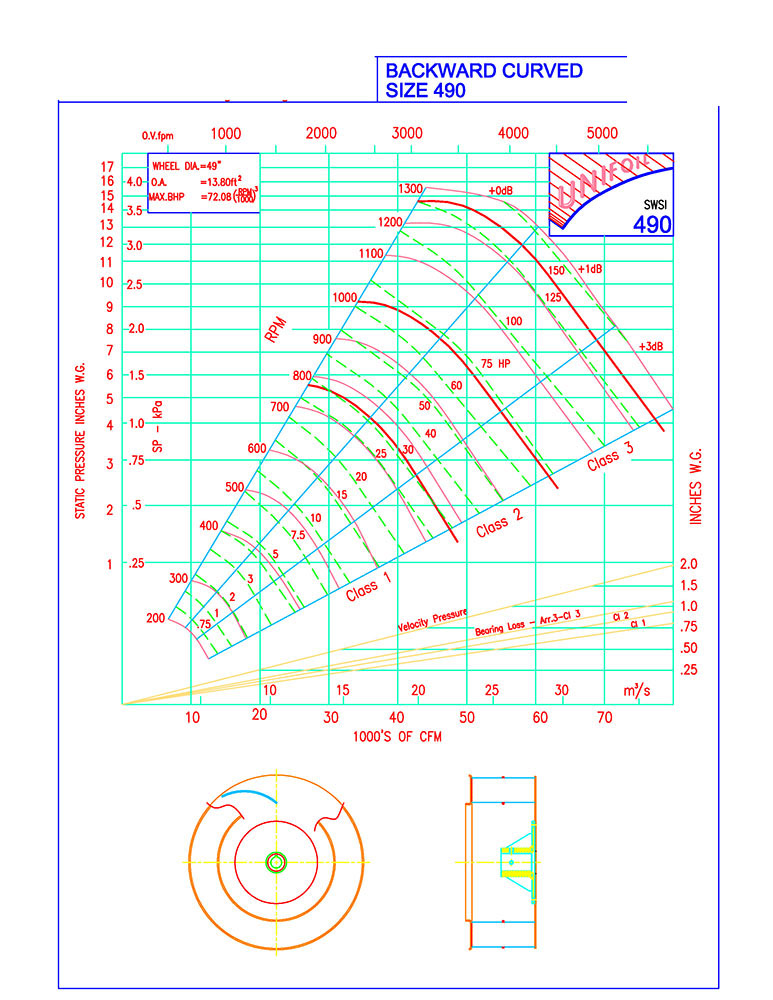

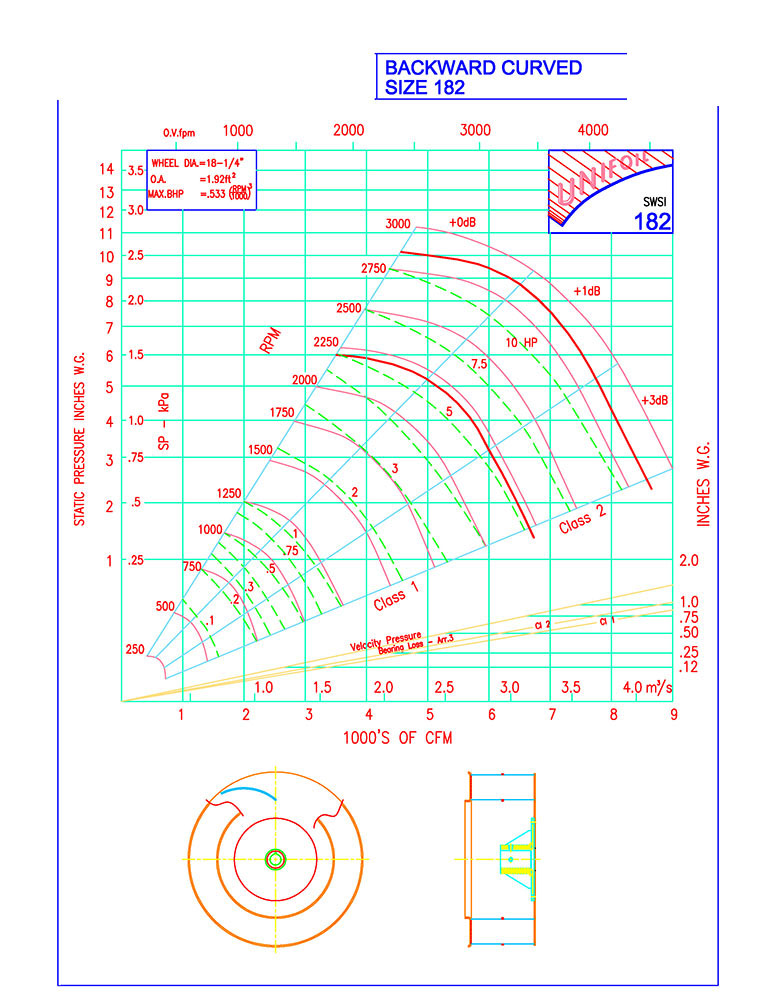

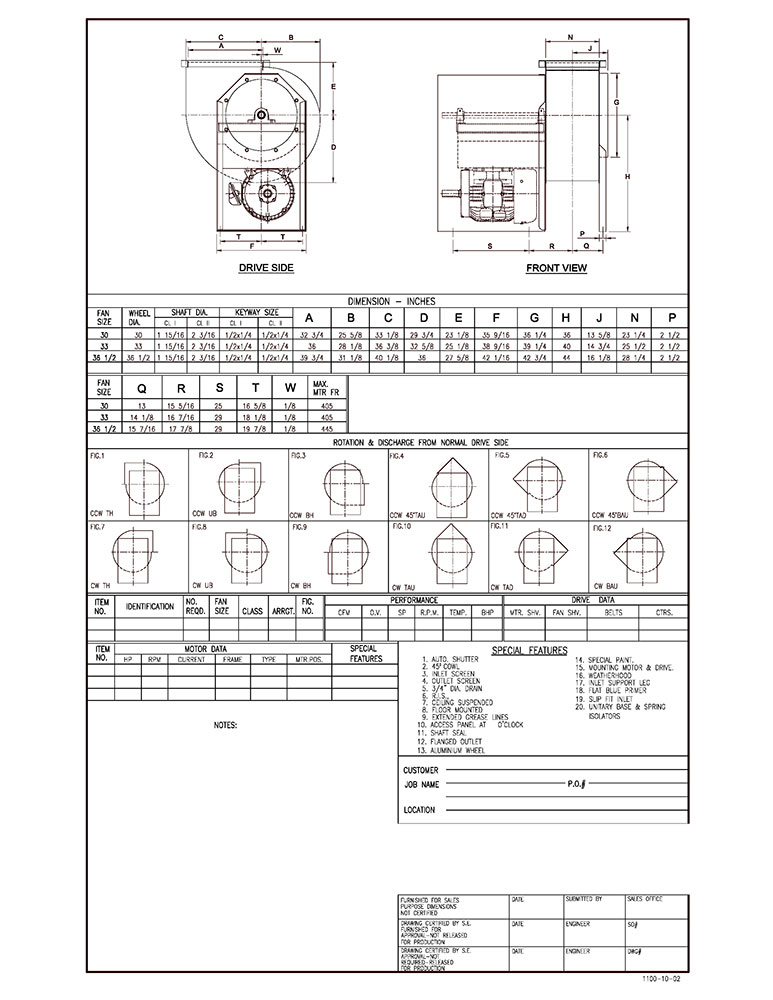

TYPICAL UTILITY CENTRIFUGAL FAN –1100

GENERAL

The centrifugal fan shall be designed and manufactured by Canada Fans to ensure smooth operation. Fan wheel shall be Backward Curved Unifoil™ as shown in plans with all steel construction. Unless otherwise directed, Canada Blower fans shall be arrangement 10 with the motor located under the bearing support base, the rotation and discharge are as shown on the layout drawings ventilating.com fanblower.com highpressureblower.net industrialblowerfan.com industrialfanblower.net industrialfanblower.com pressureblower.net northernindustrialsupplycompany.com industrialpressureblower.com tenderall.com chicagoblowercanada.com cbblower.com buffaloblower.com buffalofan.com nis-co.com canadianblower.com olegsystems.com canadablower.com abbblower.com acmefan.net industrialblower.net fansandblowers.net americanblower.net barryfan.com cincinnatifan.net canadafans.com barryfan.net pennbarry.net pennfan.net tcffan.com.

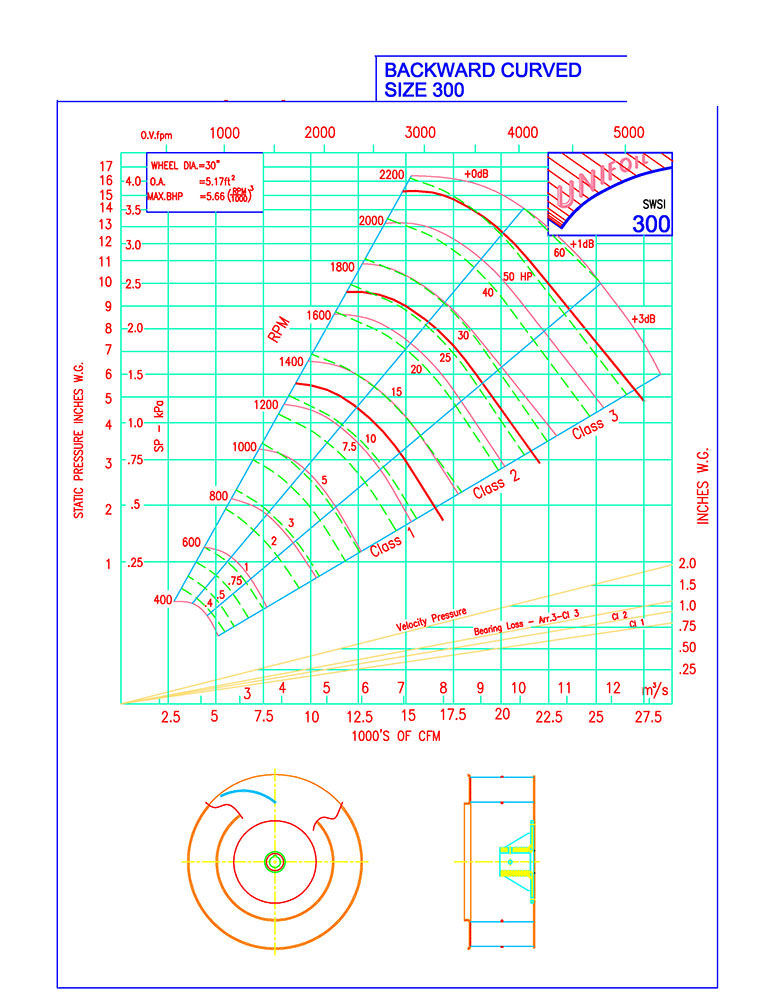

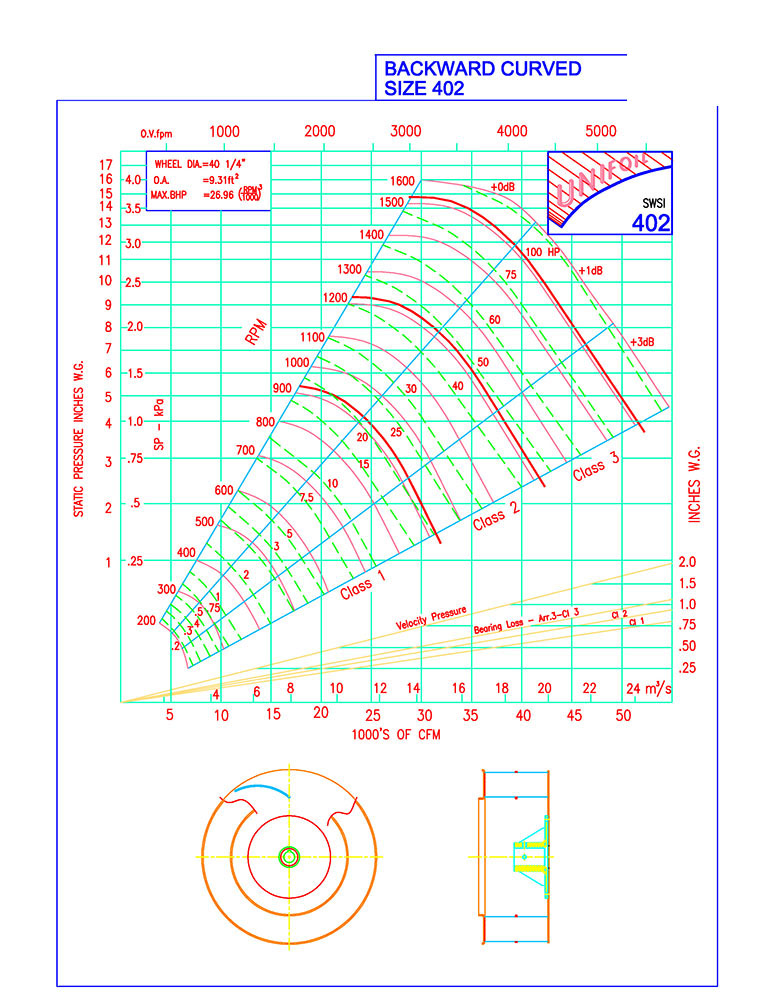

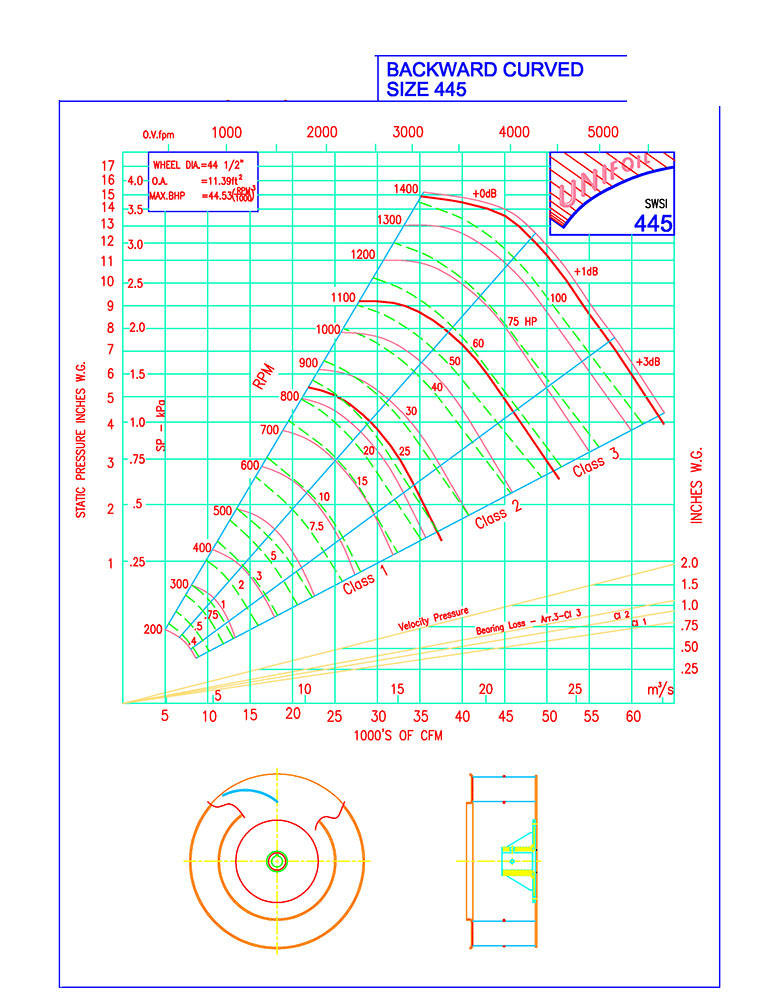

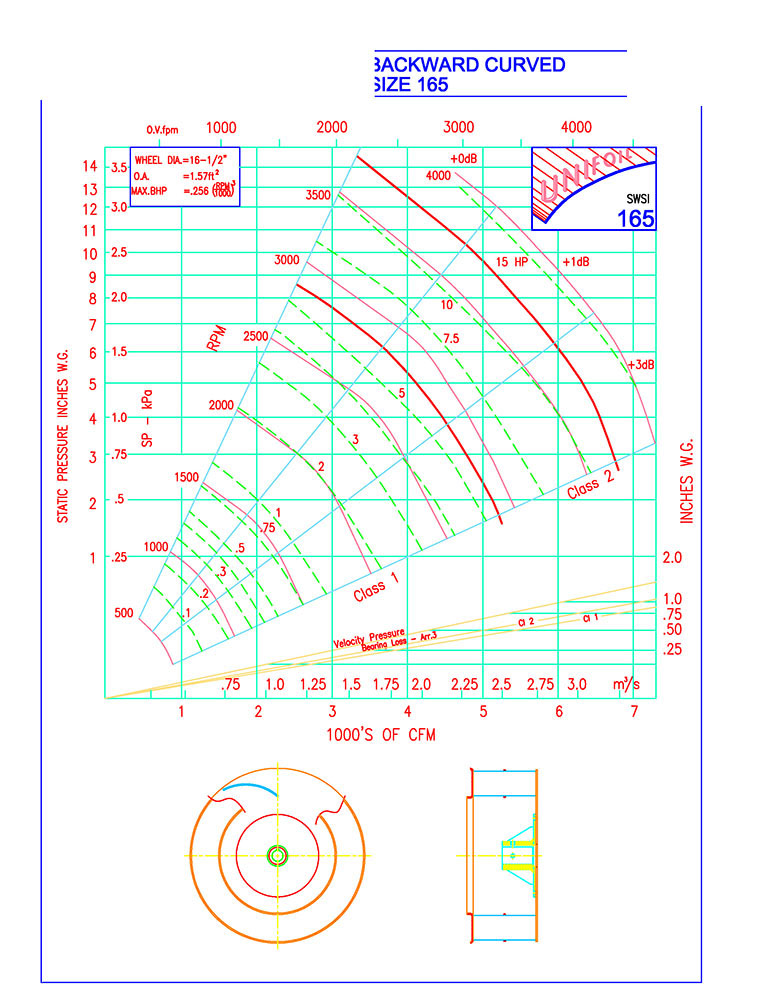

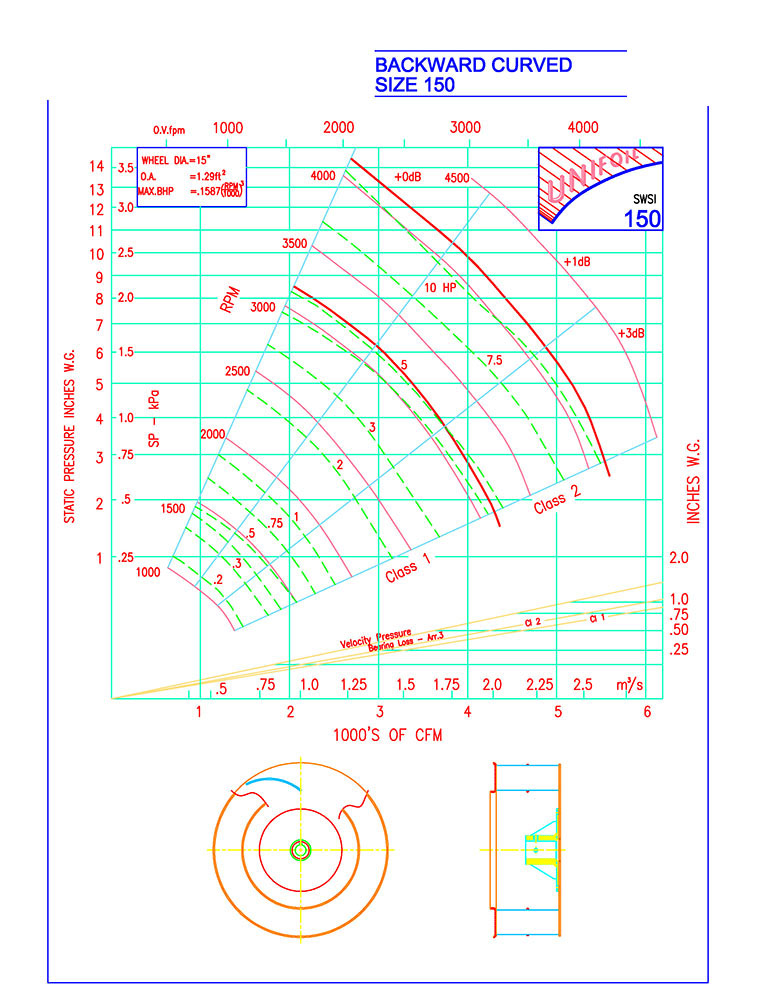

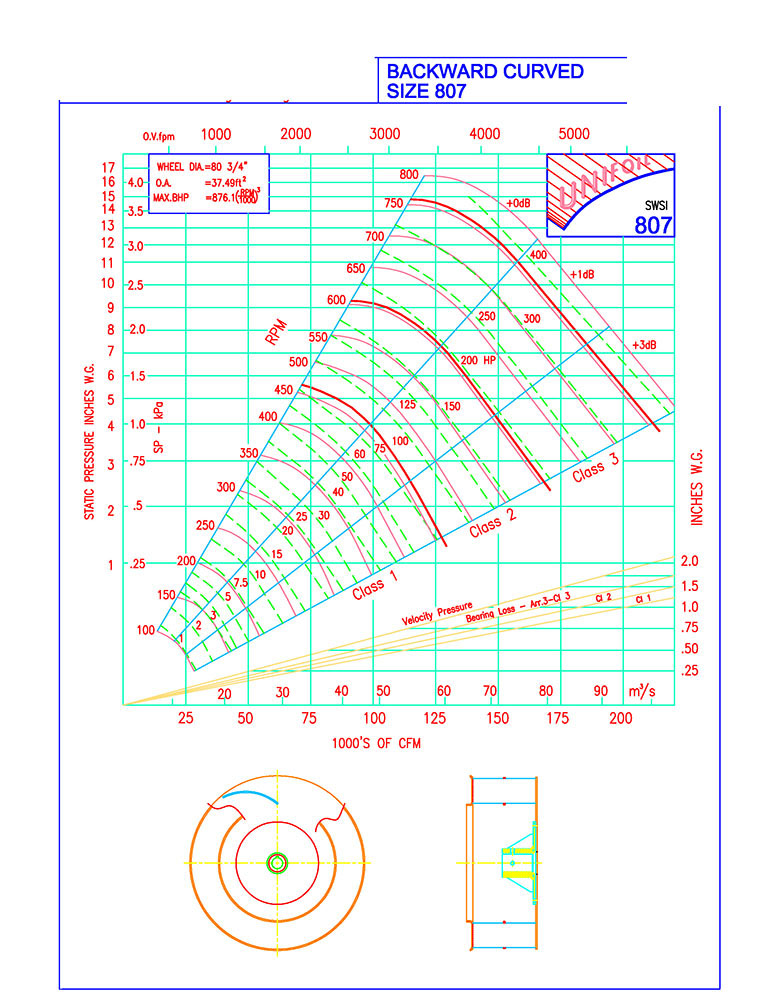

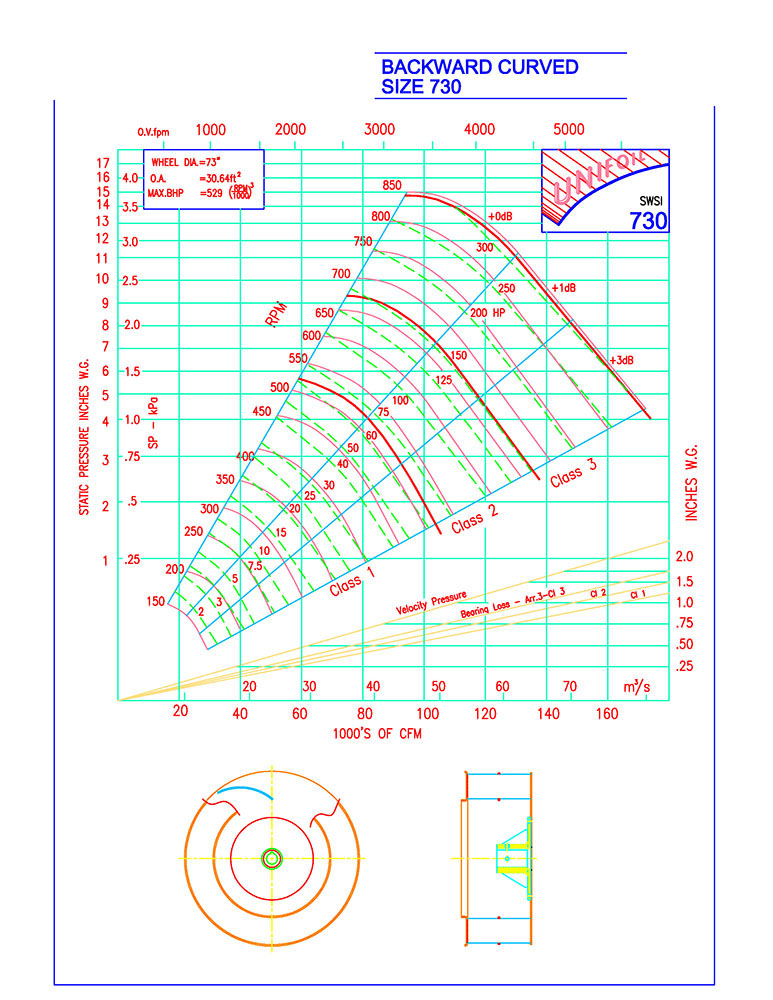

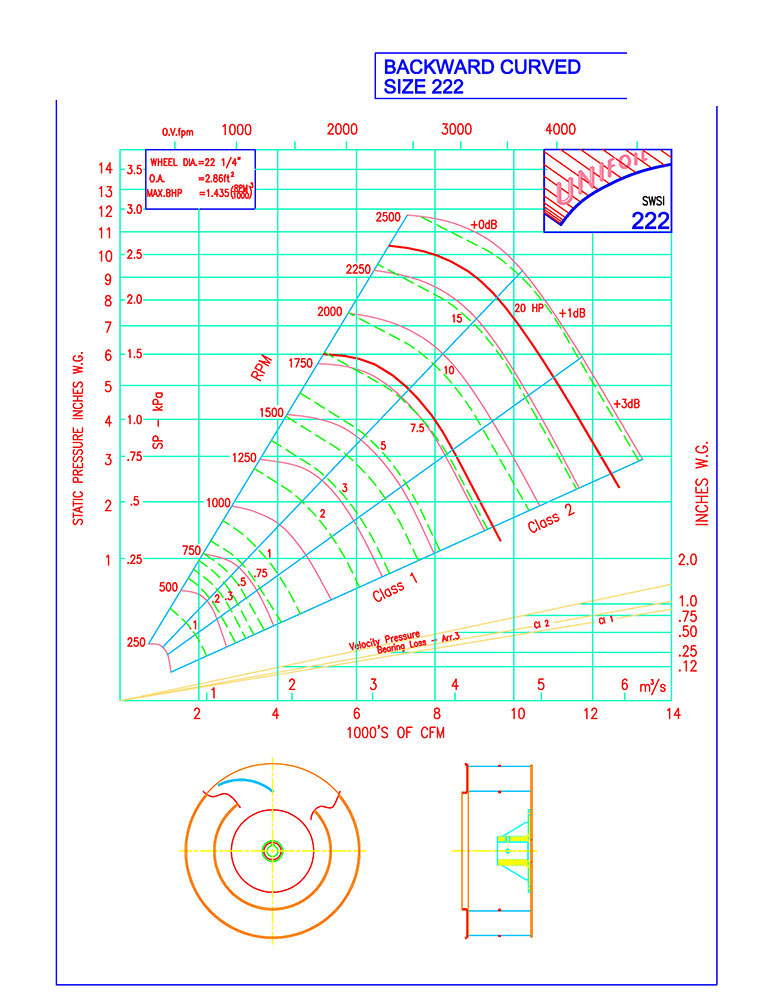

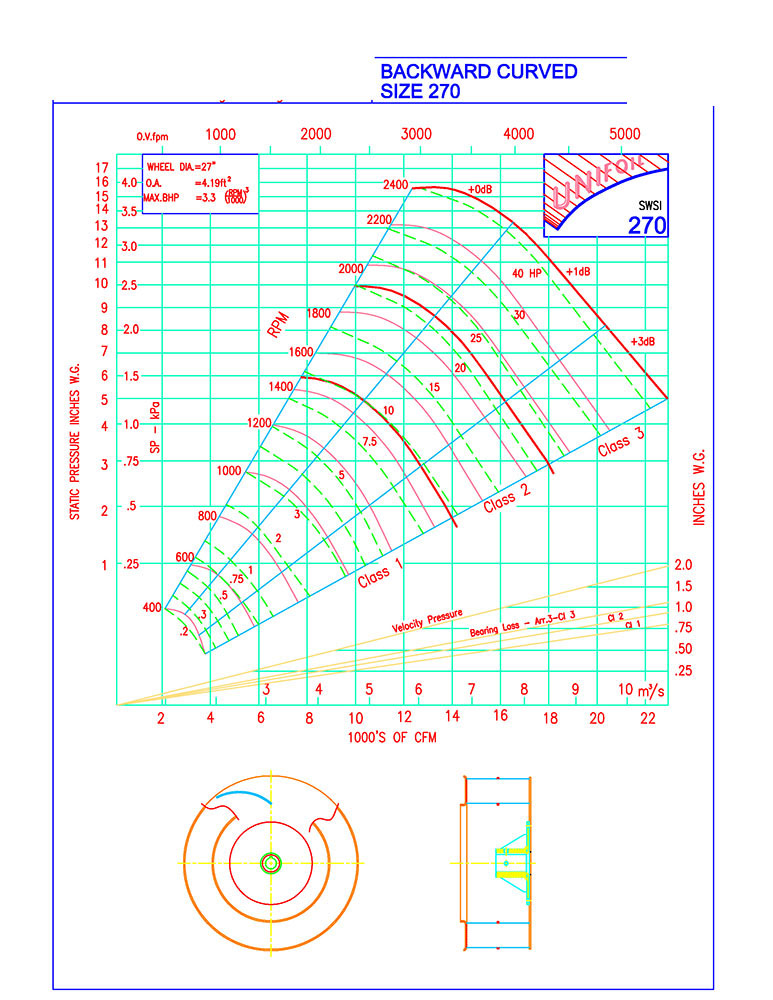

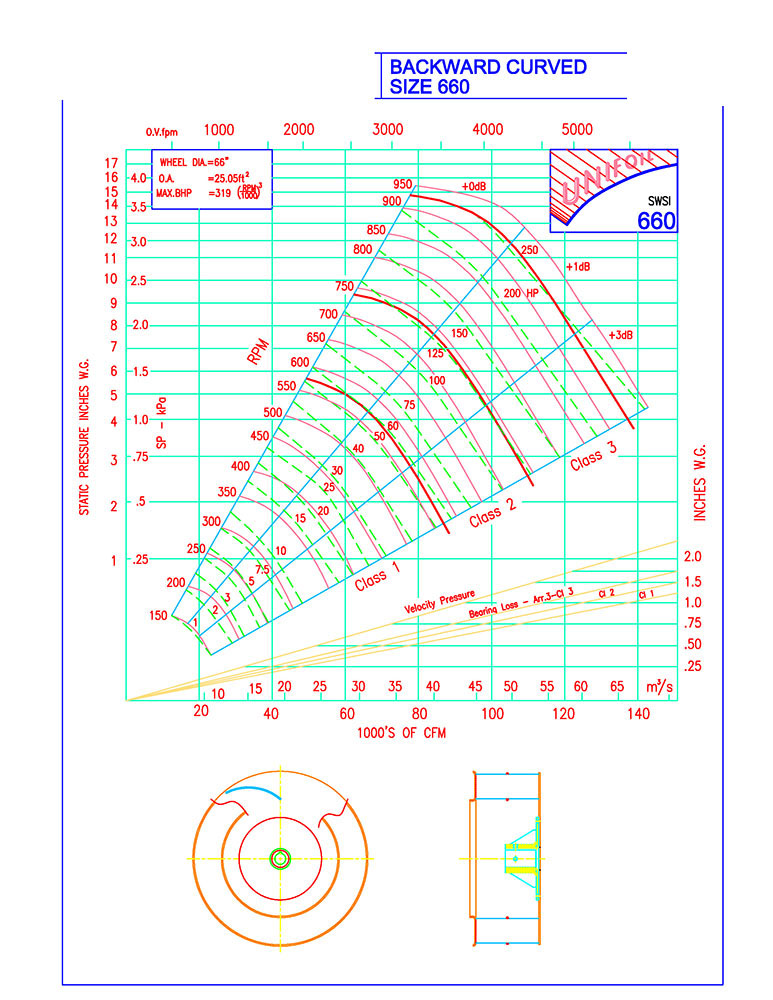

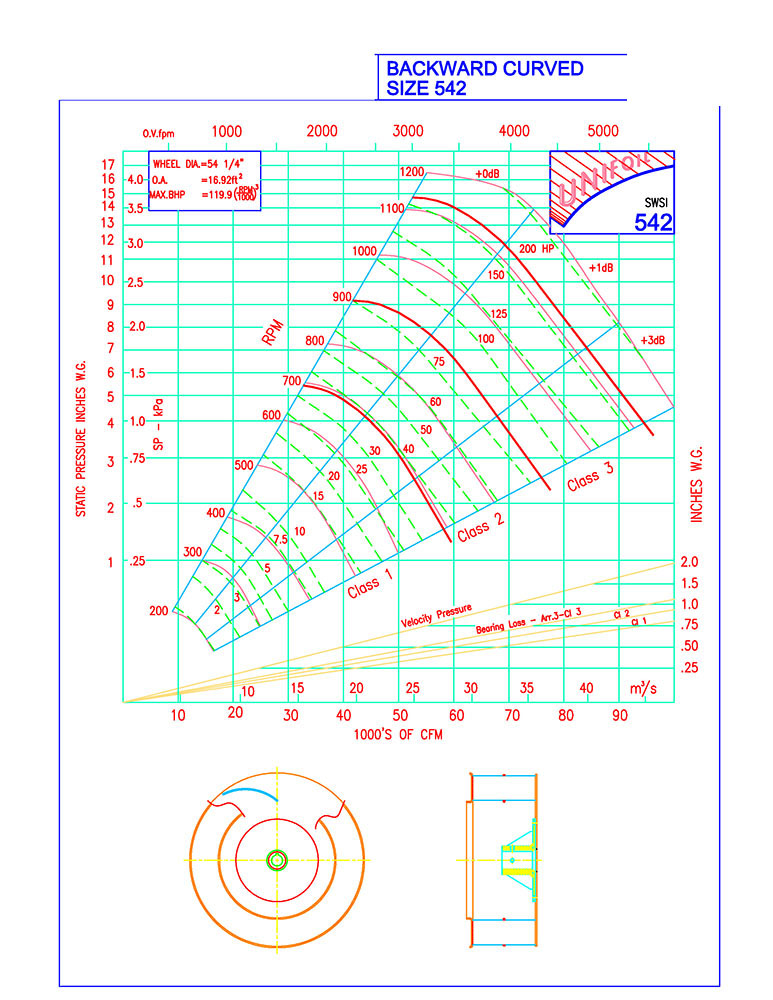

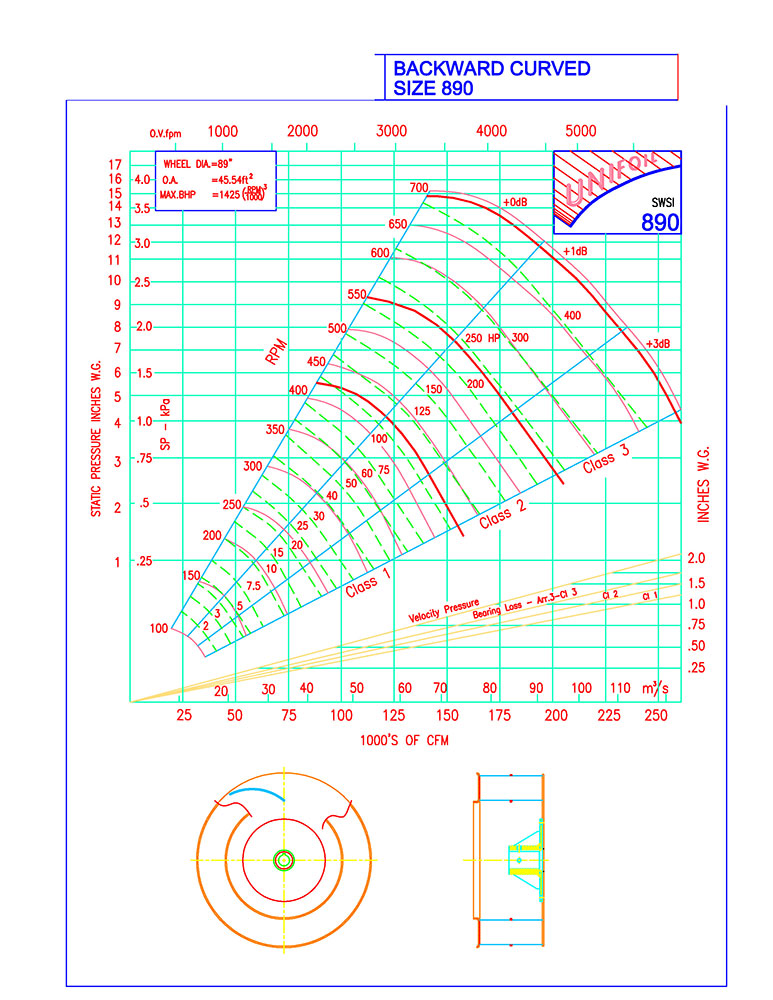

PERFORMANCE

Fan ratings shall be based on tests made in accordance with AMCA Standard 210. Flow shall be actual volumetric flow at the fan inlet. Fan static pressure is defined as static pressure at fan outlet less total pressure at fan inlet. Standard inlet density is to be taken as 0.75 lb/ft3 with corrections for temperature, elevation, inlet static pressure, gas composition and humidity as defined in the schedule. Canada Blower fans shall be selected to operate to the right of the peak static pressure at the given speed to ensure stable performance. Fan brake horsepower shall be equal to or less than specified at the given flow and fan static pressure.

SOUND

Canada Blower Fan manufacturer shall provide sound power level ratings for fans tested and rated in accordance with AMCA Standards 300 and 301. Sound power ratings shall be in decibels (reference 10-12 watts) in eight octave bands. Fan sound power levels will be corrected for installation by the specifying engineer...dBA or sound pressure levels only are not acceptable.

CONSTRUCTION

Canada Blower fan housings are to be heavy -- min. gauge per chart below, continuous seam welded construction with flanged and punched outlet. Housings with lock seams or spot welded construction are not acceptable. Fan housings to be constructed so the discharge can be rotated in 45° increments by means of a bolted fan housing to fan bracing connection.

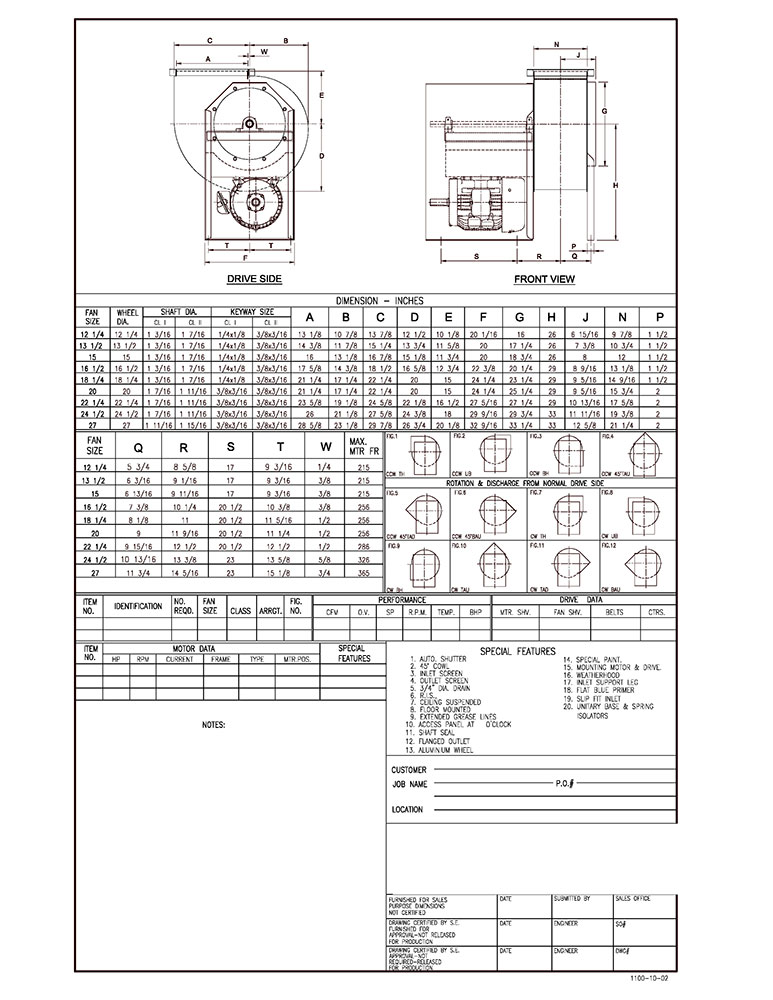

12” Thru 20” 12 gauge (0.1046” or 2.65 mm) 22-1/4” Thru 36-1/2” 10 gauge (0.1345” or 3.42 mm)

BEARINGS

Fan bearings are to be heavy duty, grease lubricated, precision anti-friction spherical roller, self-aligning design. Bearings for blowers shall be designed for a minimum L-10 life of 150,000 when rated at the fan's maximum cataloged operating speed. Higher L-10 life bearings are available on request.

SHAFT

Shafts are to be ASTM A-108 steel, grade 1040/1045, precision turned, ground and polished. Grade 1018 steel is not acceptable. The shaft's first critical speed shall be at least 125% of the fan's maximum operating speed.

Canada Fans Inc.

Canada Fans Product Index

www.canadafans.com

TYPICAL UTILITY CENTRIFUGAL FAN –1100

PAINT

All fan surfaces are to be thoroughly prepared prior to painting using a combination of washing and hand and power tool cleaning as required in SSPC-SP-3. After cleaning, all surfaces (except fan wheel) are to be coated with industrial grade alkyd enamel. Surfaces of bolted components not accessible after assembly shall be coated and allowed to dry prior to final assembly. Primer only will not be accepted.

BALANCE & INSPECTION

All Canada Blower fans shall be precision balanced to ISO quality grade 2.5, report to be submitted with the maintenance manual. A final inspection by a qualified inspector prior to shipment is required to include: scope of supply confirmation, balance, welding, dimensions, bearings, duct and base connection points, paint finish and overall workmanship. Sound, performance and vibration test available for an extra charge.

ACCESSORIES

Accessories shall be provided as called for in the plans and specifications. Standard accessories include:

Motor to be NEMA Design B 3/60/460-575V-1800 rpm, high efficiency TEFC 1.15 SF V-Belt Drives - Variable Speed/Constant Speed with min 1.5 SF Weather cover required Extended lubrication lines (nylon, copper or stainless steel) with fittings terminating in an accessible area.

Additional Features that may be required:

Access Door – bolted/quick opening or plug type with raised door Companion Flange (angle companion flange bolted to the fan inlet or outlet flange) Inlet or Outlet screen heavy gauge wire on 2” centres, also available to OSHA standards Vibration Isolation - Spring - Rubber-In-Shear – Rubber/Cork/Steel pads Outlet damper Gravity back draft damper Rain cowl Spark Resistant Construction

AMCA “A” All parts of the fan in contact with the air stream non-ferrous material AMCA “B” Non-ferrous wheel and aluminum rubbing ring where shaft passes through blower Housing with shaft seal AMCA “C” Aluminum inlet cone and Aluminum rubbing ring


Contact Canada Fans today to find out more about our full line of world class backward inclined blowers to meet all of your industrial blower fan needs. Our backward inclined blowers are used in both commercial and industrial applications and are used all over Canada and the United States. Our Industrial Blowers and Large Industrial Fans come in both Direct Drive Blower and Belt Drive Blower configurations. You can also choose between forward curve blowers and backward inclined blowers, depending on your needs. We also carry a range of centrifugal blower fans which are high rated and high temperature blowers. We also carry a wide range of propeller fans, plenum fans, large industrial fans which can come in both belt drive and direct drive configurations.
