Vaneaxial Fans Aluminum Wheel

Canada Fans Industrial Blowers and Fans has a long and well established record of producing a full range of large industrial fans, blowers and belt drive and direct drive propeller fans for commercial and industrial applications. Our Engineering and Product Design Departments have expert professionals who can assist customers develop custom designed air handling and conveying systems that meet and exceed their critical industrial fan and blower applications. Regardless of your ventilation requirements, rely on Canada Fans Industrial Blowers & Fans to deliver the best and most effective air movement systems and solutions possible.


Canada Fans Inc.

Canada Fans Product Index

www.canadafans.com

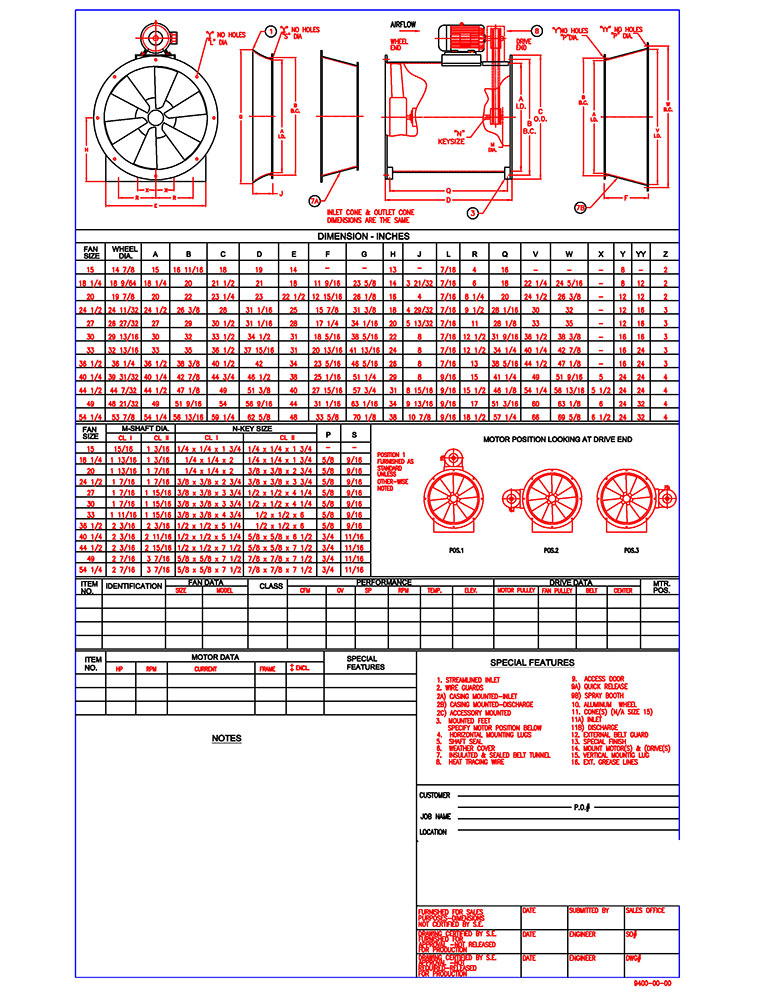

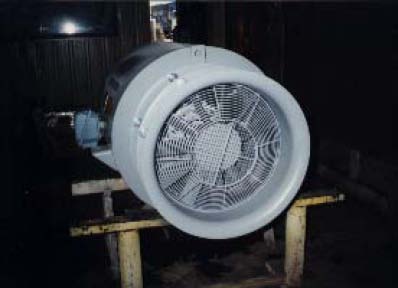

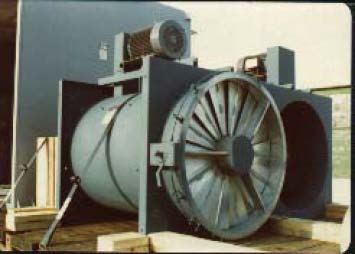

TYPICAL SPECIFICATION VANEAXIAL FANS –9600 Aluminum Wheel

GENERAL Fans shall be (direct/belt) driven vaneaxial type as designed and manufactured by Canada Fans to ensure smooth operation. Fan wheels shall be aluminum with airfoil cross-section blades in all sizes. Unless otherwise directed, fans shall have the arrangement, motor position and orientation as shown on the layout fan drawings ventilating.com fanblower.com highpressureblower.net industrialblowerfan.com industrialfanblower.net industrialfanblower.com pressureblower.net northernindustrialsupplycompany.com industrialpressureblower.com tenderall.com chicagoblowercanada.com cbblower.com buffaloblower.com buffalofan.com nis-co.com canadianblower.com olegsystems.com canadablower.com abbblower.com acmefan.net industrialblower.net fansandblowers.net americanblower.net barryfan.com cincinnatifan.net canadafans.com barryfan.net pennbarry.net pennfan.net tcffan.com. Fan wheels have fixed or adjustable pitch with stoppers. Ventilator wheels have fixed or adjustable pitch with stoppers.

PERFORMANCE

Canada Blower fan ratings shall be based on tests made in accordance with AMCA Standard 210. Flow shall be actual volumetric flow at the fan inlet. Fan static pressure is defined as static pressure at fan outlet less total pressure at fan inlet. Standard inlet density is to be taken as 0.75 lb/ft3 with corrections for temperature, elevation, inlet static pressure, gas composition and humidity as defined in the schedule. Fans shall be selected to operate to the right of the peak static pressure at the given speed to ensure stable performance. Fan brake horsepower shall be equal to or less than specified at the given flow and fan static pressure.

SOUND

Fan manufacturers shall provide sound power level ratings for fans tested and rated in accordance with AMCA Standards 300 and 301. Sound power ratings shall be in decibels (reference 10-12 watts) in eight octave bands. Sound power levels will be corrected for installation by the specifying engineer...dBA or sound pressure levels only are not acceptable.

CONSTRUCTION

Fan housings are to be heavy—min. 10 gauge, continuously welded construction with flanged and punched inlet and outlet. Housings with lock seams or spot welded construction are not acceptable. Aerodynamically designed straightening vanes are to be integral to the fan housing.

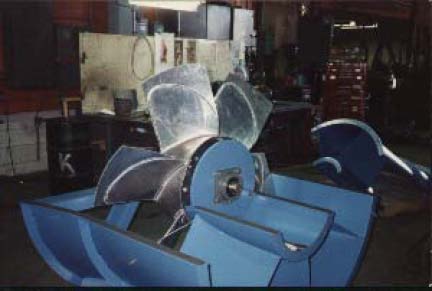

Adjustable pitch Canada Blower fans shall have individually adjustable blades will be adjustable when fan is at rest. Fan blades are to be cast aluminum alloy. Ventilator blades shall be airfoil shape for maximum efficiency. Fan blade shall have an index mark cast into the hub for setting position of blade. Hubs are to be cast aluminum alloy and machined to accept blades. Fan rotors shall be attached to motor shaft by use of split, taper-lock Q-D bushing.

BEARINGS (belt driven fans)

Fan bearings are to be heavy duty, grease lubricated, precision anti-friction deep grove ball or spherical roller, self-aligning design. Bearings shall be designed for a minimum L-10 life of 40,000 when rated at the fan's maximum cataloged operating speed. (L-10 equals 15,000 for Class I 12” to 30”).

SHAFT (belt driven fans)

Fan shafts are to be ASTM A-108 steel, grade 1040/1045, precision turned, ground and polished. Grade 1018 steel is not acceptable. The shaft's first critical speed shall be at least 143% of the fan's maximum operating speed.

Canada Fans Inc.

Canada Fans Product Index

www.canadafans.com

TYPICAL SPECIFICATION VANEAXIAL FANS –9600 Aluminum Wheel

PAINT

All fan surfaces are to be thoroughly prepared prior to painting using a combination of washing and hand and power tool cleaning as required in SSPC-SP-3. After cleaning, all surfaces (except wheel) are to be coated with industrial grade alkyd enamel. Surfaces of bolted components not accessible after assembly shall be coated and allowed to dry prior to final ventilator assembly. Primer only will not be accepted.

BALANCE & INSPECTION

All fans shall be precision balanced and have a final inspection by a qualified inspector prior to shipment. Inspection to include: scope of supply confirmation, balance, welding, dimensions, bearings, duct and base connection points, paint finish and overall workmanship.

ACCESSORIES

Accessories shall be provided as called for in the plans and specifications. Standard accessories include:

Motor to be NEMA Design B 3/60/460-575V-1800 rpm, high efficiency TEFC 1.15 SF

V-Belt Drives - Variable Speed/Constant Speed with min 1.5 SF

Belt Guard or weather cover required on belt driven fans

Extended lubrication lines (nylon, copper or stainless steel) with fittings terminating in an

accessible area. (belt driven fans only)

Additional Features that may be required:

Access Door – bolted/quick opening or plug type with raised door

Drain – internal thread pipe coupling with plug if required

Companion Flange (angle companion flange bolted to the fan inlet or outlet flange)

Inlet or Outlet screen heavy gauge wire on 2” centres

Inlet Bell streamlined for smooth air flow, flanged and bolted to the fan inlet

Ventilator Inlet or Outlet Cone suitable to support the fan weight in vertical or horizontal position and is

bolted to the fan

Above 500°F, high temperature aluminum paint required

Vibration Isolation - Spring - Rubber-In-Shear

Horizontal mounting feet

Horizontal or vertical mounting lugs.

Accoustic cladding on fan or accoustic cones.

Spark Resistant Construction –

AMCA “A” All parts of the fan in contact with the air stream non-ferrous material

AMCA “B” Non-ferrous wheel and aluminum rubbing ring where shaft passes through

housing

AMCA “C” Aluminum inlet cone and aluminum rubbing ring

Canada Fans Inc.

Canada Fans Product Index

www.canadafans.com

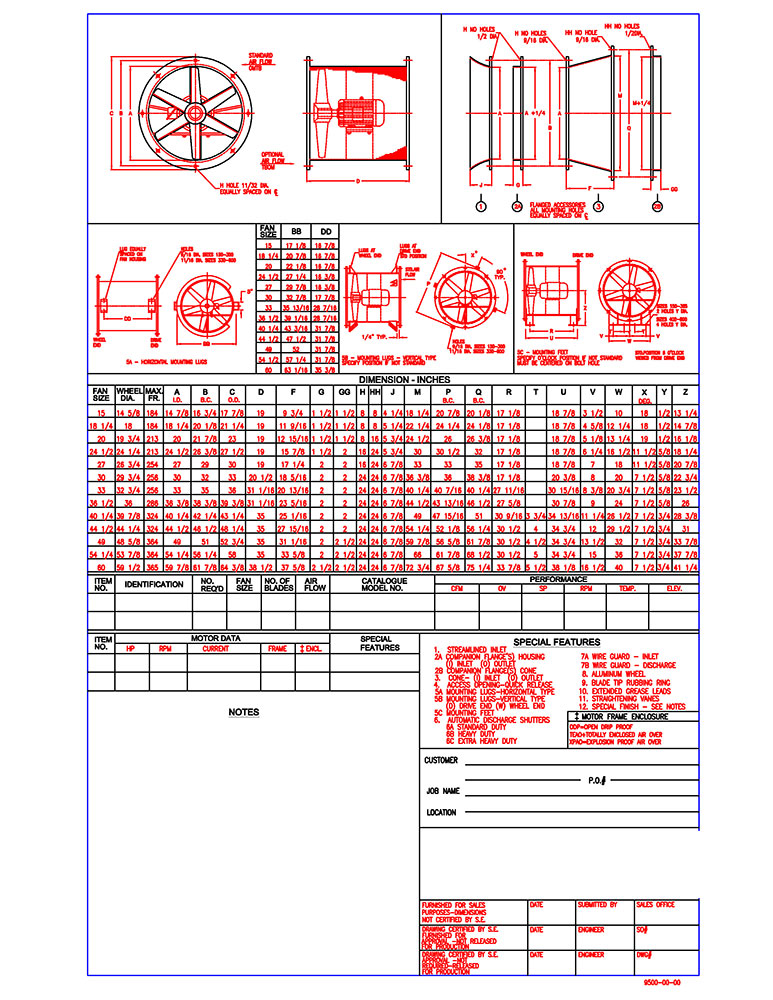

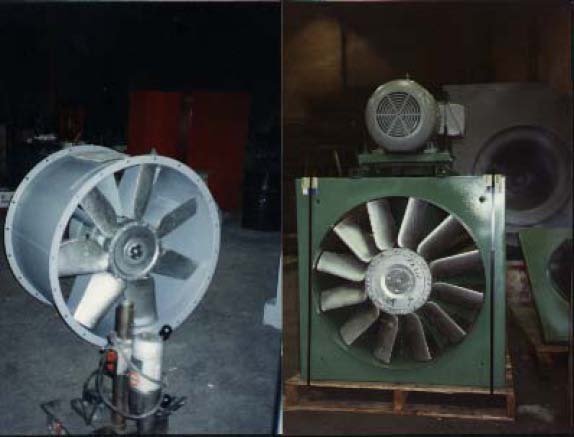

TYPICAL SPECIFICATION TUBEAXIAL FANS –9600 Aluminum Wheel

GENERAL

Fans shall be (direct/belt) driven tubeaxial type as designed and manufactured by Canada Fans to ensure smooth operation. Fan wheels shall be aluminum with airfoil cross-section blades in all sizes. Unless otherwise directed, fans shall have the arrangement, motor position and orientation as shown on the layout drawings. Wheels have fixed or adjustable pitch with stoppers.

PERFORMANCE

Fan ratings shall be based on tests made in accordance with AMCA Standard 210. Flow shall be actual volumetric flow at the fan inlet. Fan static pressure is defined as static pressure at fan outlet less total pressure at fan inlet. Standard inlet density is to be taken as 0.75 lb/ft3 with corrections for temperature, elevation, inlet static pressure, gas composition and humidity as defined in the schedule. Fans shall be selected to operate to the right of the peak static pressure at the given speed to ensure stable performance. Fan brake horsepower shall be equal to or less than specified at the given flow and fan static pressure.

SOUND

Fan manufacturers shall provide sound power level ratings for fans tested and rated in accordance with AMCA Standards 300 and 301. Sound power ratings shall be in decibels (reference 10-12 watts) in eight octave bands. Sound power levels will be corrected for installation by the specifying engineer...dBA or sound pressure levels only are not acceptable.

CONSTRUCTION

Fan housings are to be heavy – min 12 gauge, continuously welded construction with flanged and punched inlet and outlet. Housings with lock seams or spot welded construction are not acceptable.

Adjustable pitch fans shall have individually adjustable blades will be adjustable when fan is at rest. Fan blades are to be cast aluminum alloy. Blades shall be airfoil shape for maximum efficiency. Ventilator blade shall have an index mark cast into the hub for setting position of blade. Hubs are to be cast aluminum alloy and machined to accept blades. Fan rotors shall be attached to motor shaft by use of split, taper-lock Q-D bushing.

BEARINGS (belt driven fans)

Fan bearings are to be heavy duty, grease lubricated, precision anti-friction deep grove ball or spherical roller, self-aligning design. Bearings shall be designed for a minimum L-10 life of 100,000 when rated at the fan's maximum cataloged operating speed.

SHAFT (belt driven fans)

Fan shafts are to be ASTM A-108 steel, grade 1040/1045, precision turned, ground and polished. Grade 1018 steel is not acceptable. The shaft's first critical speed shall be at least 143% of the fan's maximum operating speed.

Canada Fans Inc.

Canada Fans Product Index

www.canadafans.com

TYPICAL SPECIFICATION TUBEAXIAL FANS –9600 Aluminum Wheel

PAINT

All fan surfaces are to be thoroughly prepared prior to painting using a combination of washing and hand and power tool cleaning as required in SSPC-SP-3. After cleaning, all surfaces (except wheel) are to be coated with industrial grade alkyd enamel. Surfaces of bolted components not accessible after assembly shall be coated and allowed to dry prior to final blower assembly. Primer only will not be accepted.

BALANCE & INSPECTION

All fans shall be precision balanced to ISO quality grade 2.5, report to be submitted with the maintenance manual. A final fan inspection by a qualified inspector prior to shipment is required to include: scope of supply confirmation, balance, welding, dimensions, bearings, duct and base connection points, paint finish and overall workmanship.

ACCESSORIES

Fan accessories shall be provided as called for in the plans and specifications. Standard accessories include:

Motor to be NEMA Design B 3/60/460-575V-1800 rpm, high efficiency TEFC 1.15 SF

V-Belt Drives - Variable Speed/Constant Speed with min 1.2 SF

Belt Guard or weather cover required on belt driven fans

Extended lubrication lines (nylon, copper or stainless steel) with fittings terminating in an

accessible area. (belt driven fans only)

Additional Features that may be required:

Access Door – bolted/quick opening or plug type with raised door

Drain – internal thread pipe coupling with plug if required

Companion Flange (angle companion flange bolted to the fan inlet or outlet flange)

Inlet or Outlet screen heavy gauge wire on 2” centres

Inlet Bell streamlined for smooth air flow, flanged and bolted to the fan inlet

Inlet or Outlet Cone suitable to support the fan weight in vertical or horizontal position and is

bolted to the fan

Above 500°F, high temperature aluminum paint required

Vibration Isolation - Spring - Rubber-In-Shear

Horizontal mounting feet/ Suspension lugs for horizontal or vertical mounting

Spark Resistant Construction –

AMCA “A” All parts of the fan in contact with the air stream non-ferrous material

AMCA “B” Non-ferrous wheel and aluminum rubbing ring where shaft passes through

housing with shaft seal
